> RESULTS <

2008 VW MK5 R32 DSG
Bosch ME7.1.1 ECU
Temic DSG
02-19-2009

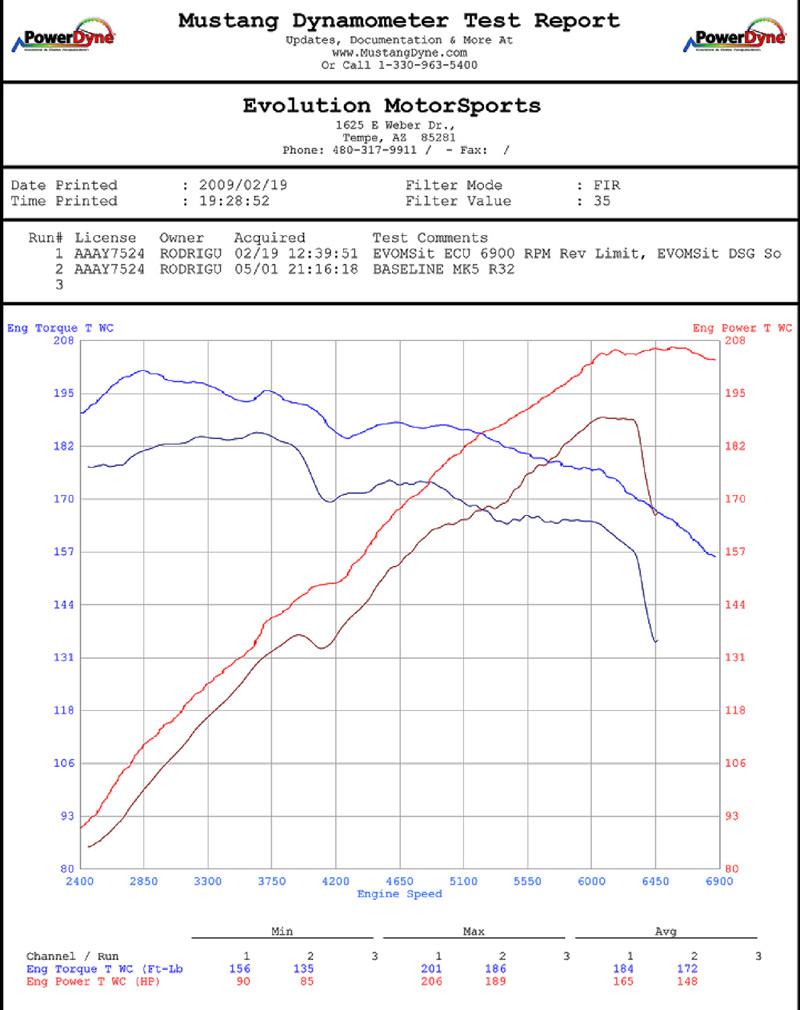

EVOMSit Run 1: EVOMSit Engine Software w/ EVOMSit DSG 6900 RPM Rev Limit, EVOMS V-Flow Air Intake
Baseline Run 2:  Baseline - ALL Stock - Stock DSG Software

Power is measured at 4 wheels on our Mustang 500 SE AWD dyno in a controlled environment for accuracy.   Dyno runs shown are the average runs of a 10 run sample group for both the Baseline and EVOMSit modified runs. Dyno runs are accurately run with the same RPM start point, same transmission gear, same octane fuel and same cool down time in-between runs.  Measurement was made with 1 x 65,000 CFM main cooling fan in the front of the vehicle. Dyno room temperature was 74.8 degrees Fahrenheit for both sets of run groups and fuel grade was 100% pump 91 octane AZ grade oxygenated fuel.


Power carries all the way to 6900 RPMS with the EVOMSit ECU & DSG Software Upgrade.  We optimized load and timing maps in the ECU calibration to maximize the new 6900 RPM rev limiter.  In order to rev past the stock 6500 RPM Rev Limit,  the DSG software must be upgraded.
